32Ft x 10Ft Jackleg Plastiso | Portable Site Office

The 32Ft x 10Ft Jackleg Plastisol Office Cabin provides a spacious, comfortable and durable workspace for construction sites, industrial projects, contractors, remote worksites and temporary office facilities.

With approximately 320 square feet of external floor area, this large portable office cabin provides ample room for desks, workstations, meetings, storage and site administration. Its fixed-point jackleg system allows the cabin to be positioned and leveled on suitable ground without requiring a conventional permanent foundation.

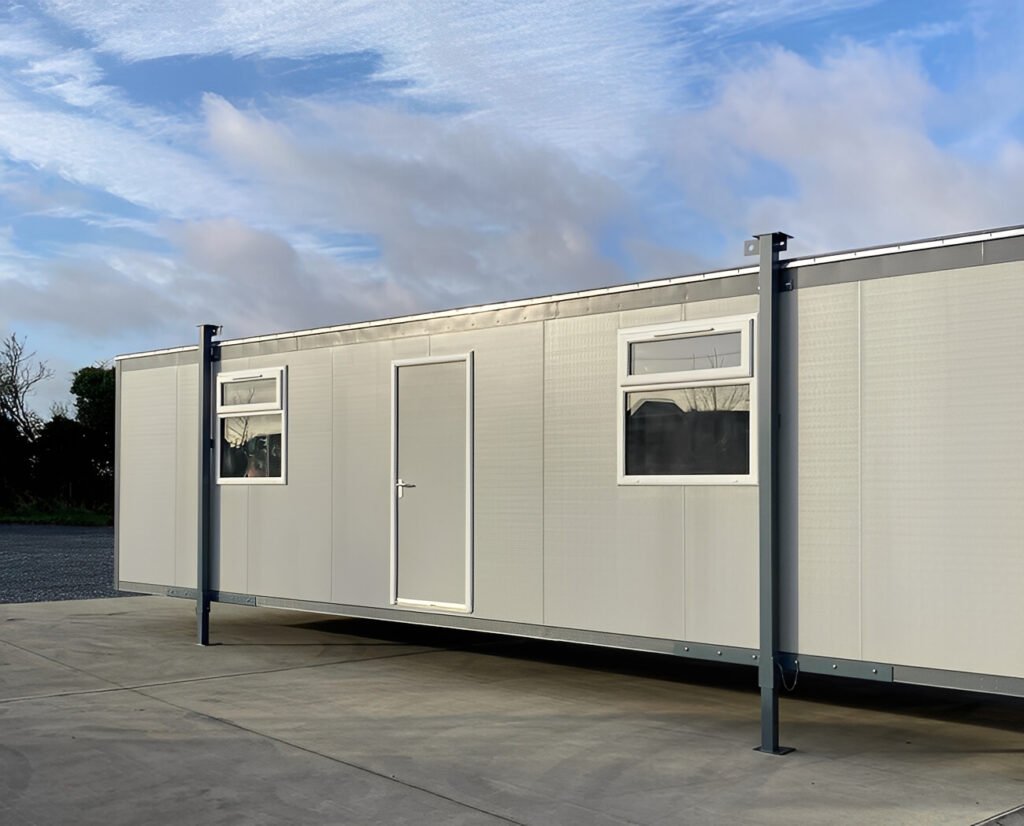

The exterior is finished in Plastisol, consisting of a plastic-coated steel sheet laminated to 9mm plywood. This creates a durable, attractive and low-maintenance exterior suitable for long-term outdoor use. A traditional textured and painted finish can also be specified where required.

Key features

• 32Ft x 10Ft external dimensions
• Approximately 320 sq. ft. external footprint
• Durable Plastisol exterior finish
• 9mm plywood laminated with plastic-coated steel

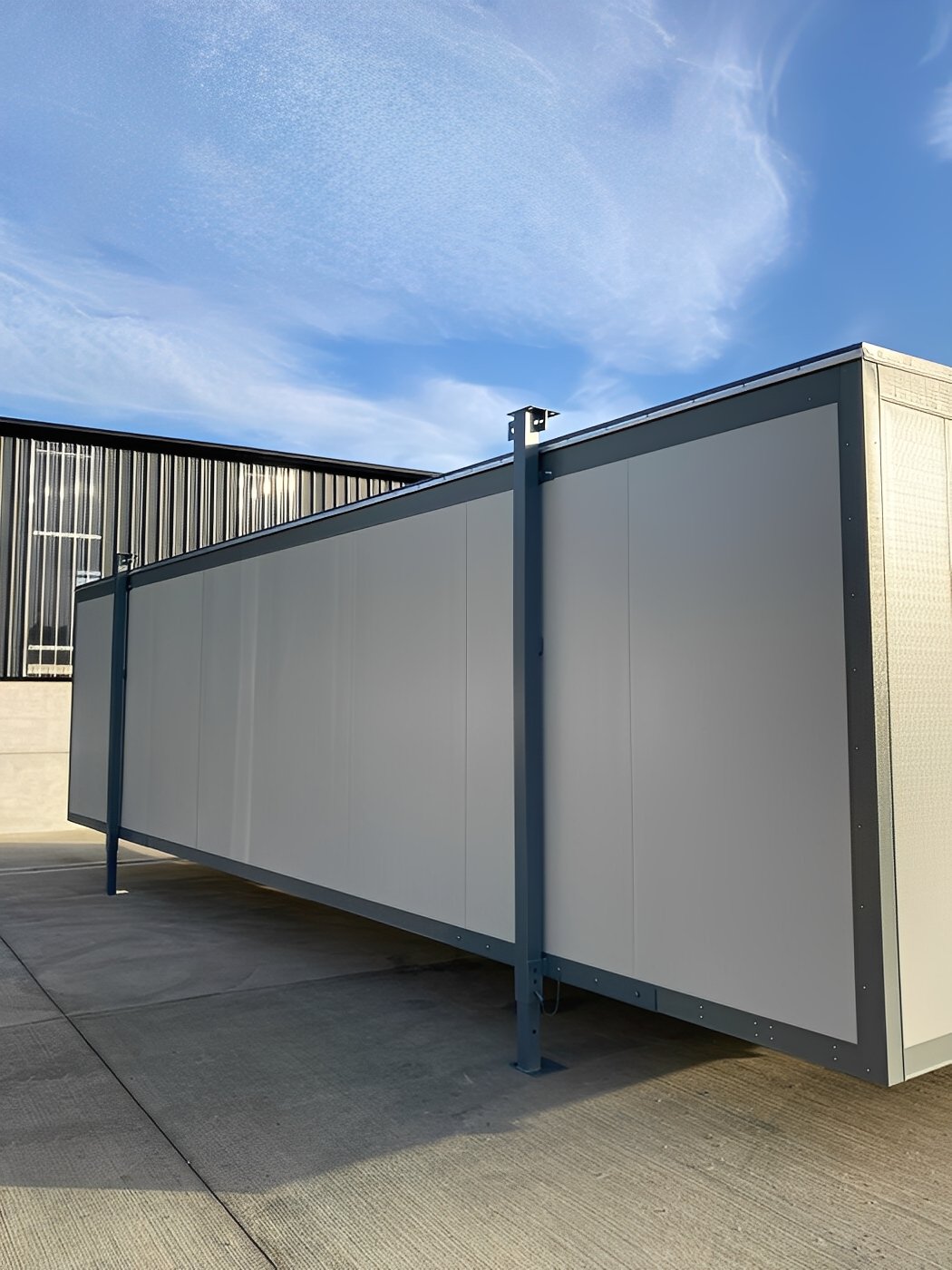

• Fixed-point jacklegs for stable positioning
• Fully insulated walls, ceiling and floor
• Sealed, easy-clean vinyl flooring

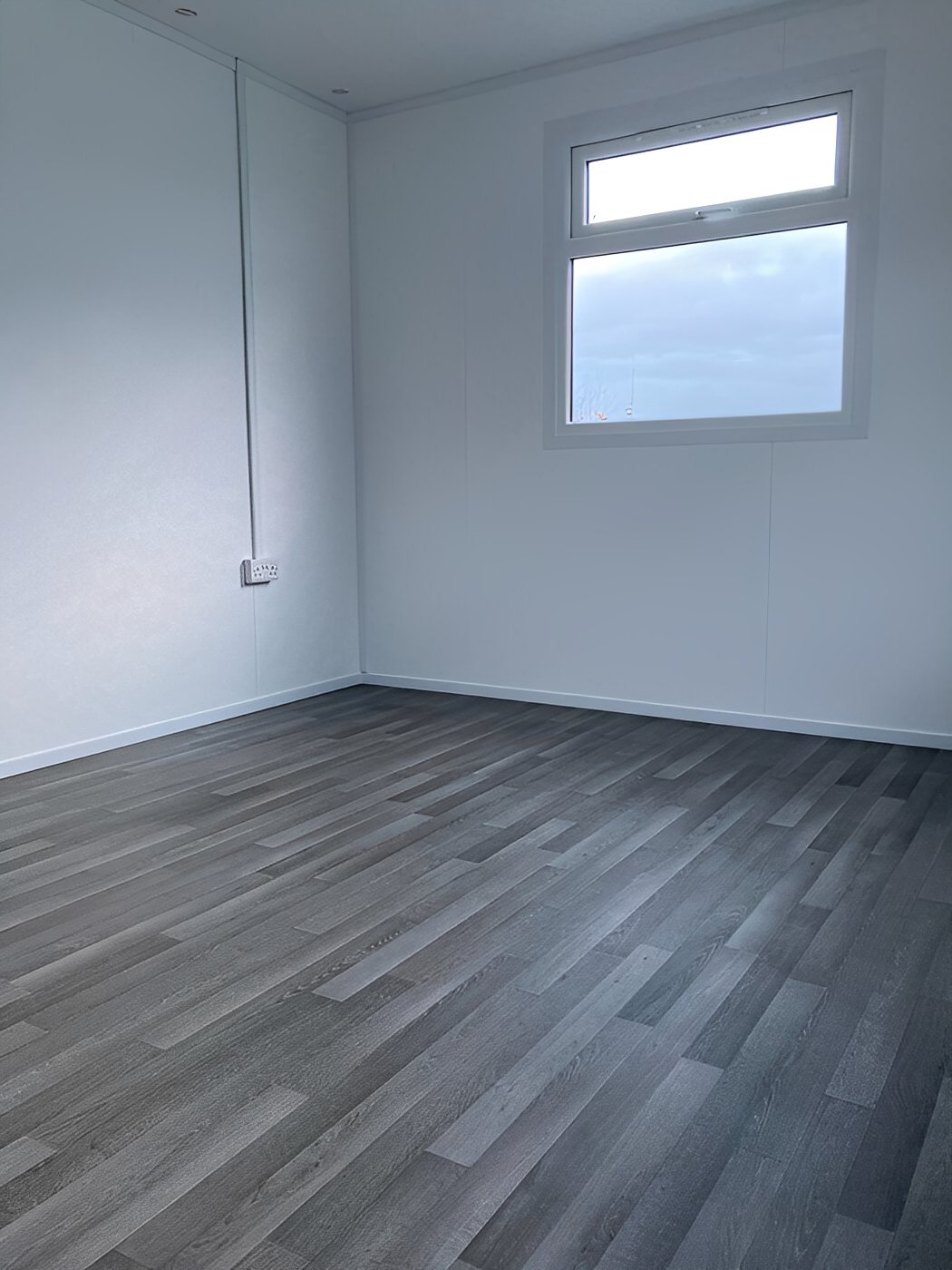

• Wipe-clean vinyl-faced interior walls
• 4 uPVC double-glazed windows
• 4 double power outlets
• 3 fluorescent light fittings

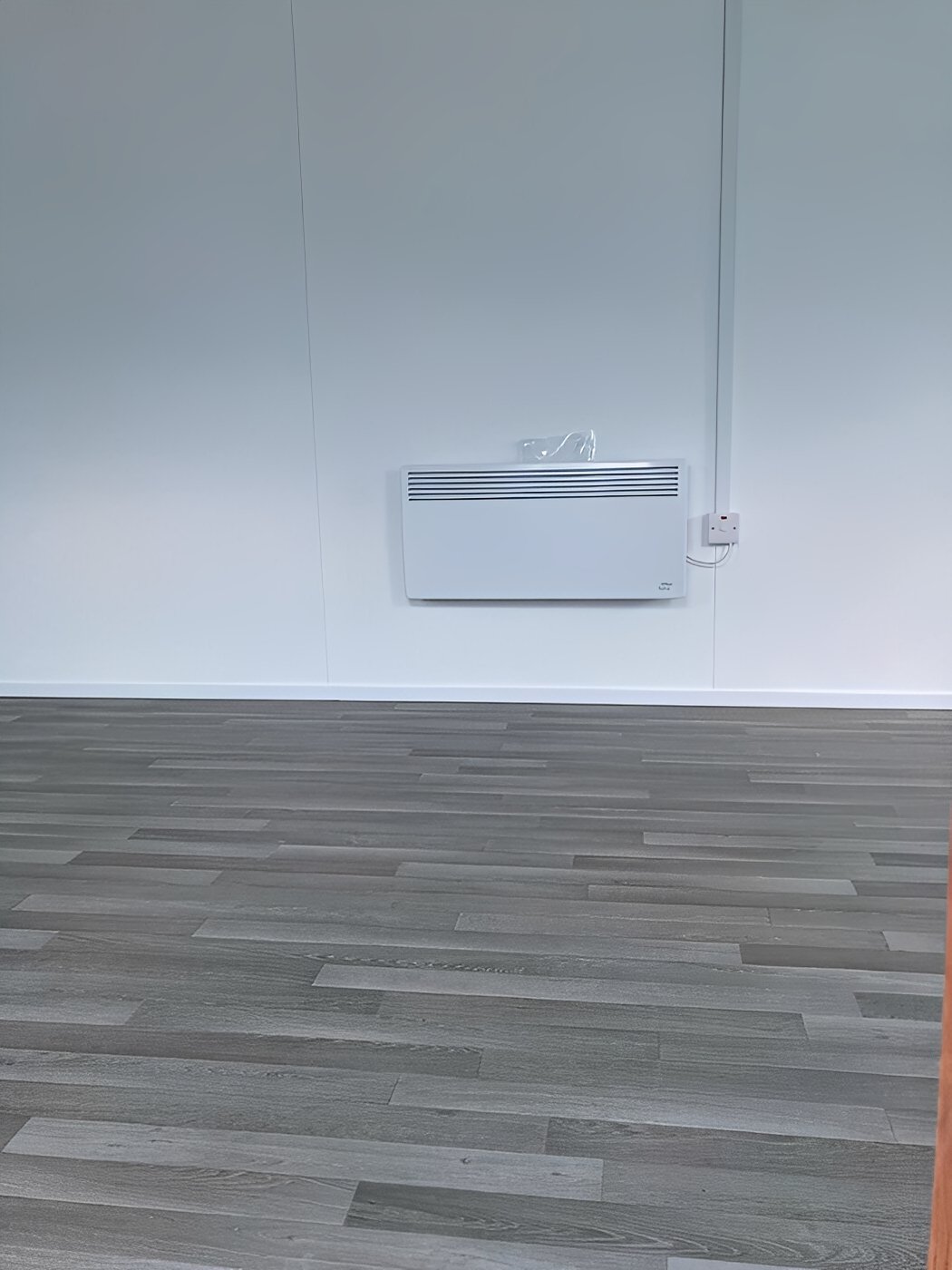

• 2 electric timed panel heaters
• Fitted electrical consumer unit
• Optional window security mesh or steel shutters
• Optional steel pedestrian door
• Available in a range of exterior colors
• Open-plan interior suitable for flexible office layouts

Dimensions

• External length: 32 ft / 9.75 m
• External width excluding jacklegs: 10 ft / 3.05 m
• External width including jacklegs: approximately 10.7 ft / 3.25 m
• External height: approximately 9 ft / 2.75 m
• Internal length: approximately 31.5 ft / 9.60 m
• Internal width: approximately 9.5 ft / 2.90 m
• Internal height: approximately 7.5 ft / 2.30 m
• Door width: approximately 2.6 ft / 0.80 m
• Door height: approximately 6.5 ft / 1.99 m

Ideal for

• Construction site offices
• Jobsite management offices
• Contractor offices
• Project offices
• Industrial sites
• Infrastructure projects
• Remote work locations
• Temporary office facilities
• Engineering and utility projects
• Staff administration areas
• Meeting and workspace facilities

The large 32Ft footprint makes this cabin particularly useful where several employees need to work in the same space. Depending on the layout, it can accommodate multiple desks, meeting tables, storage and office equipment while maintaining a comfortable working environment.
