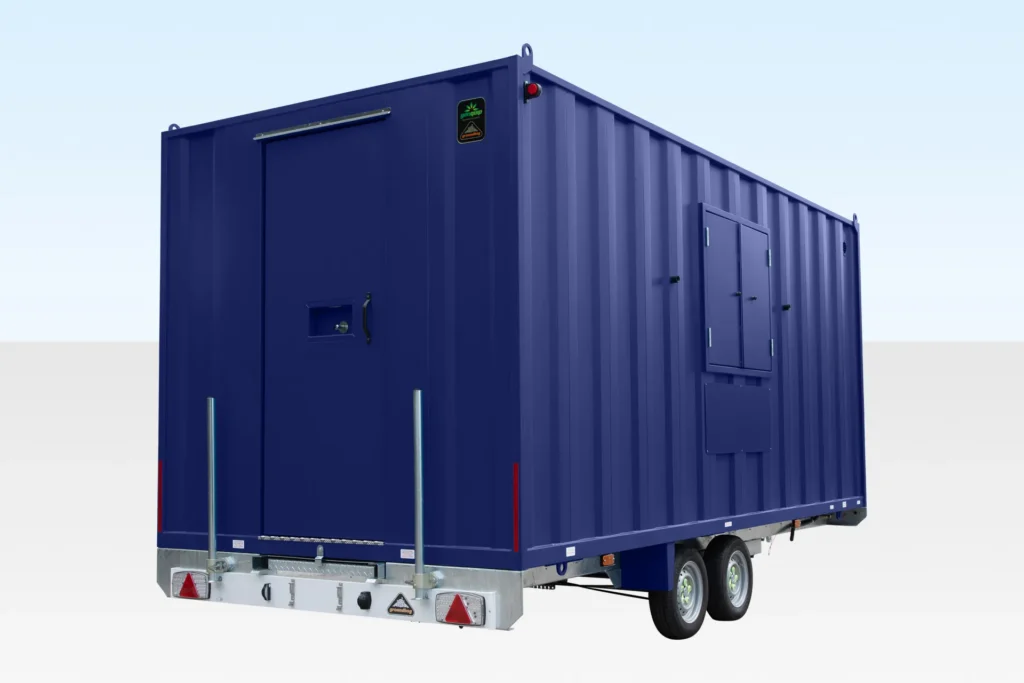

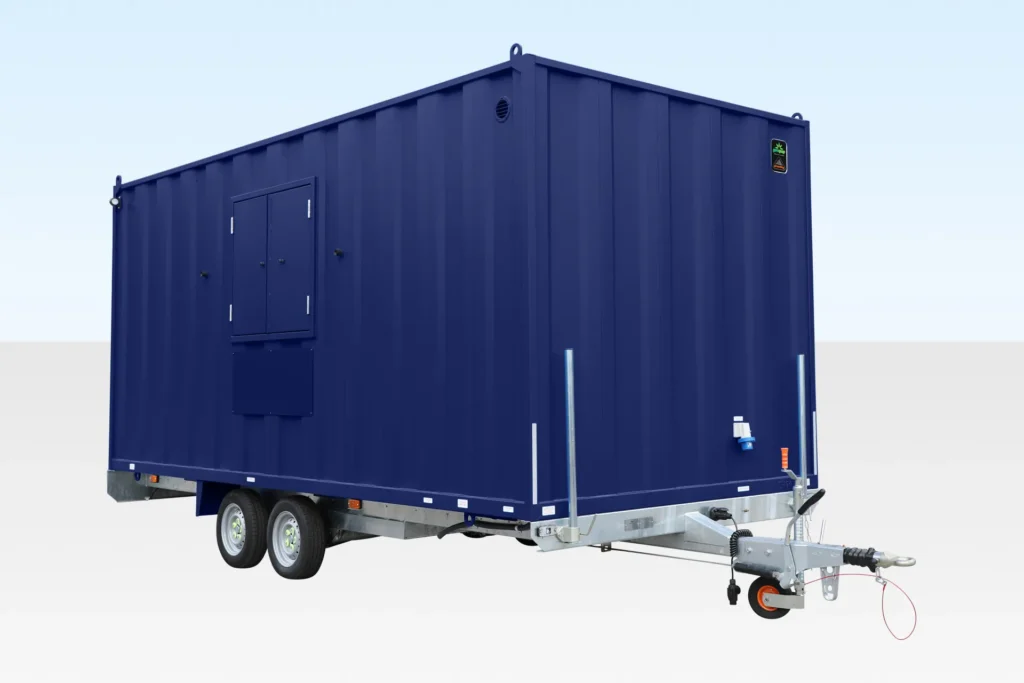

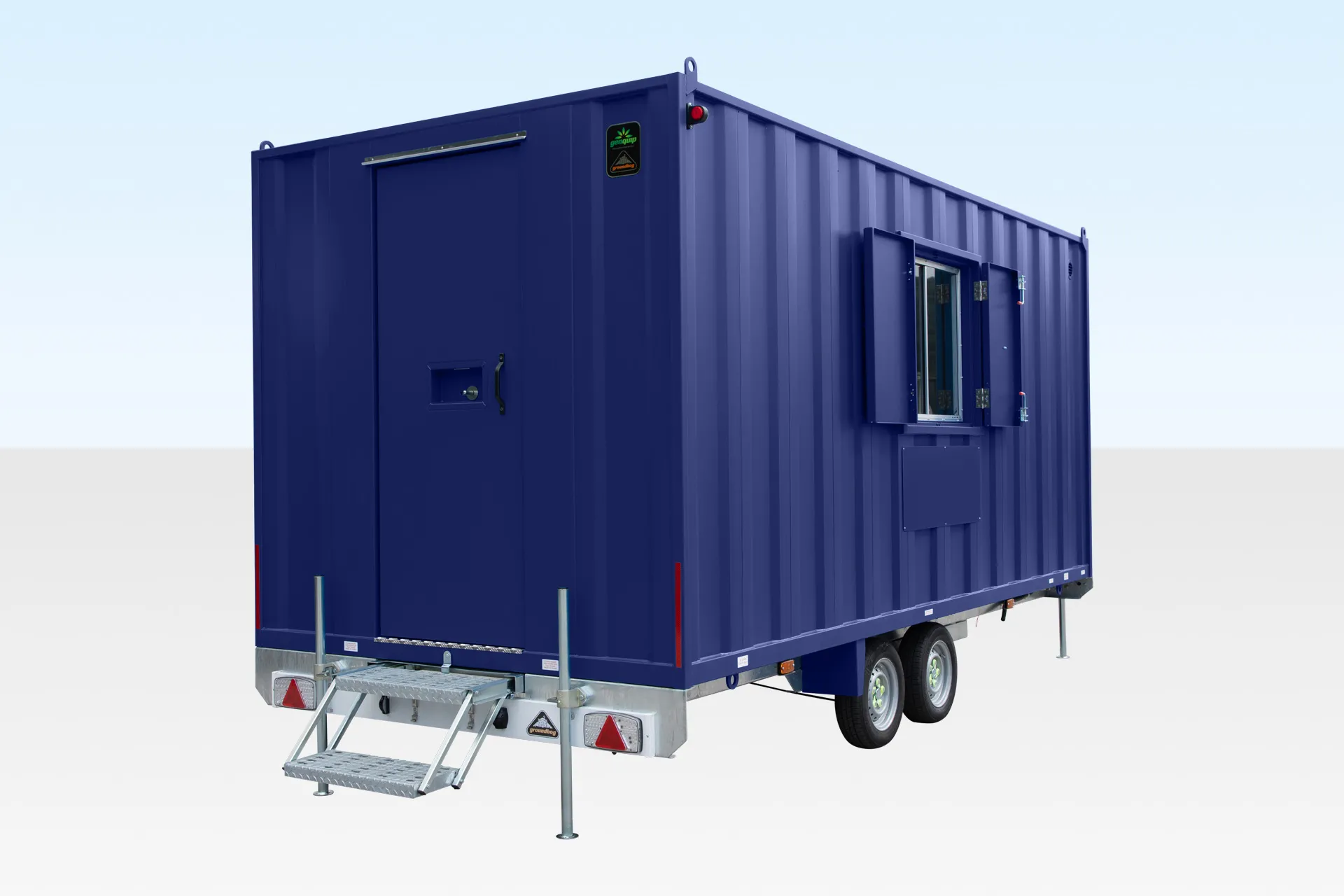

16Ft x 7Ft 6in Mobile Canteen Cabin

The 16Ft x 7Ft 6in Mobile Canteen Cabin is a portable steel welfare unit designed to provide a practical rest, break or canteen space for workers on construction sites, maintenance projects and other temporary work locations.

Built with an all-steel structure, the cabin combines mobility with practical interior facilities. Its single-axle wheeled design allows the unit to be repositioned around a work site when operational requirements change. Steel shutters and a steel door provide additional security when the cabin is not in use.

Inside, the cabin features vinyl-faced plywood wall coverings and a 2mm vinyl floor covering over an 18mm particle-board floor. These surfaces provide a practical interior suitable for regular site use.

Two LED strip lights provide interior illumination, while a wall-mounted heater provides heating when required. Two twin 13A power sockets are included for compatible electrical equipment, and a noticeboard provides a convenient area for displaying site information.

The unit requires connections to water and electricity. Electrical requirements are 32A. Depending on the installation, utilities may be supplied through suitable site services or compatible external systems.

Product Specifications

• External length: 4.88 m
• External width: 2.24 m
• External height: 3.02 m
• Internal length: 4.68 m
• Internal width: 2.14 m
• Internal height: 2.33 m
• Door width: 0.89 m
• Door height: 1.99 m
• Weight: 1,700 kg
• Floor: 18mm particle board
• Internal floor covering: 2mm vinyl
• Internal wall covering: Vinyl-faced plywood
• Windows: 1
• Power sockets: 2 twin 13A sockets
• Lighting: 2 LED strip lights
• Heating: 1 wall-mounted heater
• Noticeboard: 1
• Electrical requirement: 32A
• Configuration: Single-axle wheeled mobile cabin

Suitable Applications

The cabin can be used as an on-site canteen, worker break area or welfare facility for construction projects, highway maintenance, temporary works and other locations where a movable site facility is required.

Please confirm site access, utility connections, transportation requirements and local installation requirements before ordering.
