10ft Refrigerated Shipping Container – Thermo King Reefer Cold Storage

The 10ft Refrigerated Shipping Container (Reefer) provides a compact temperature-controlled storage solution for commercial, industrial, agricultural and logistics applications. Its smaller footprint makes it suitable for locations where a full-size 20ft or 40ft refrigerated container may not be practical.

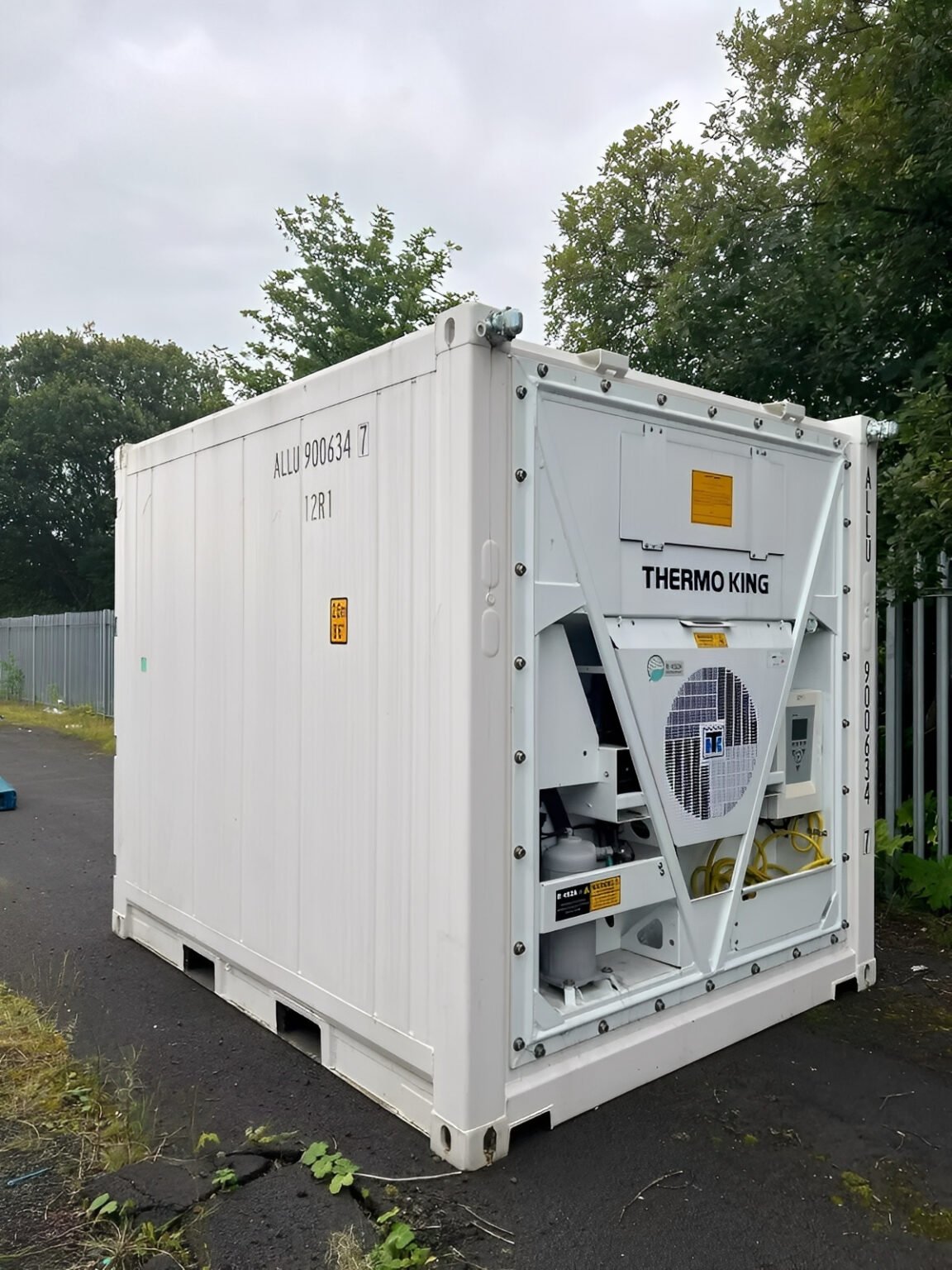

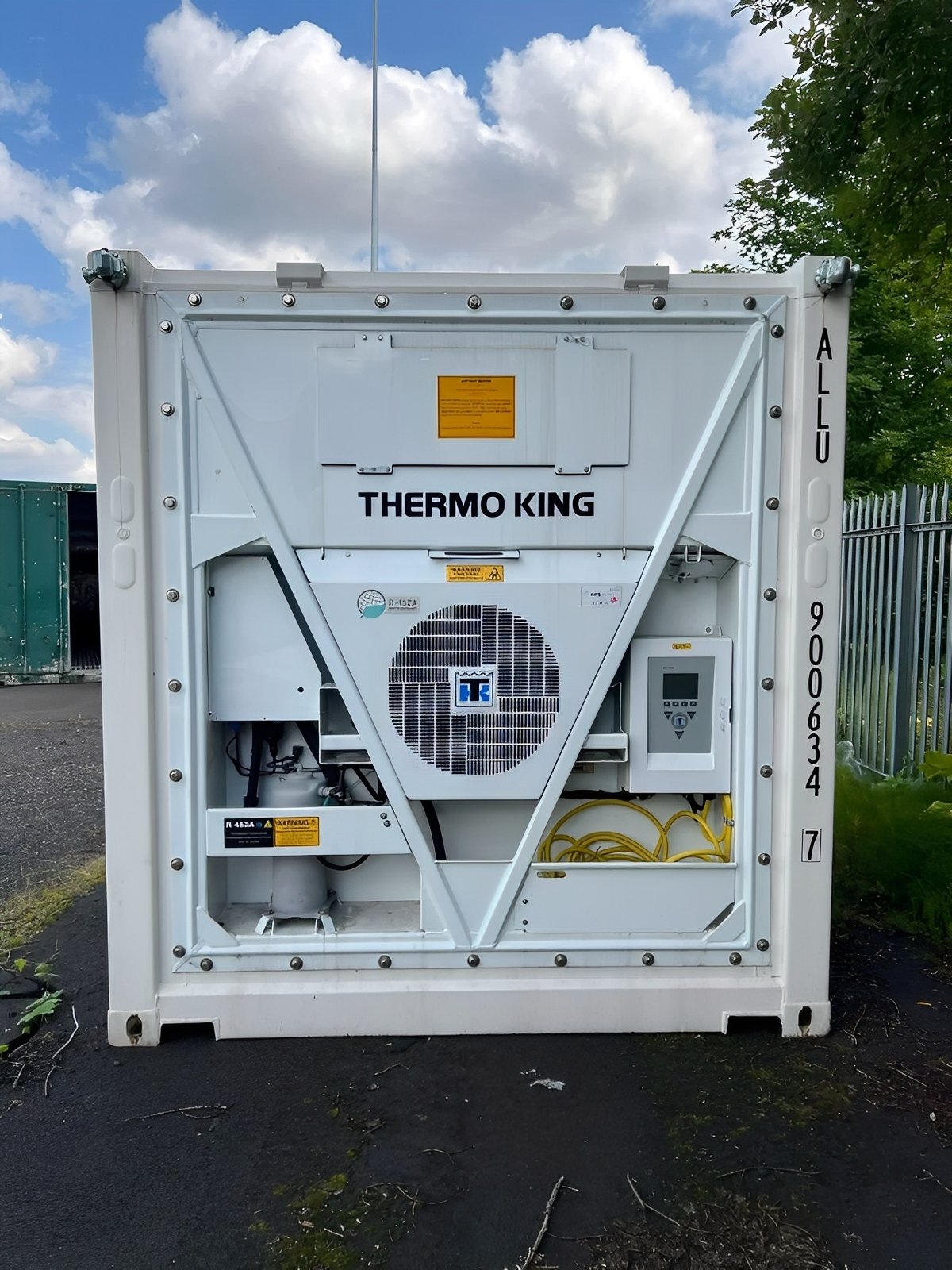

The reference configuration is equipped with a Thermo King Magnum Plus refrigeration system capable of an adjustable temperature setting from -40°C to +30°C (-40°F to +86°F). This allows the unit to support both refrigerated and frozen-storage applications when operated under appropriate conditions and connected to the required electrical supply.

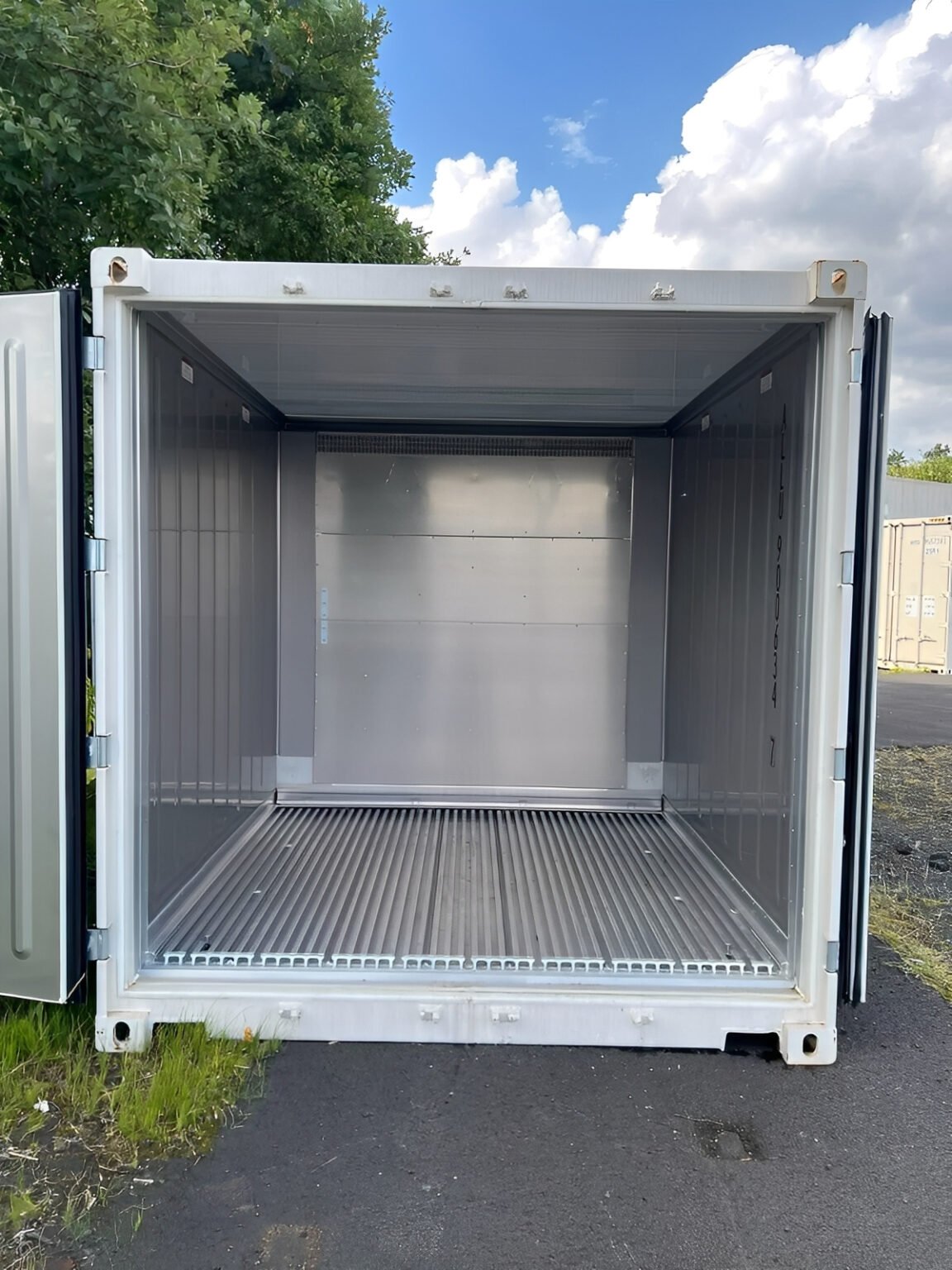

The container incorporates insulated walls, roof and flooring to reduce heat transfer and help the refrigeration system maintain the selected internal temperature. Stainless-steel interior cladding provides a durable surface suited to applications where regular cleaning is required.

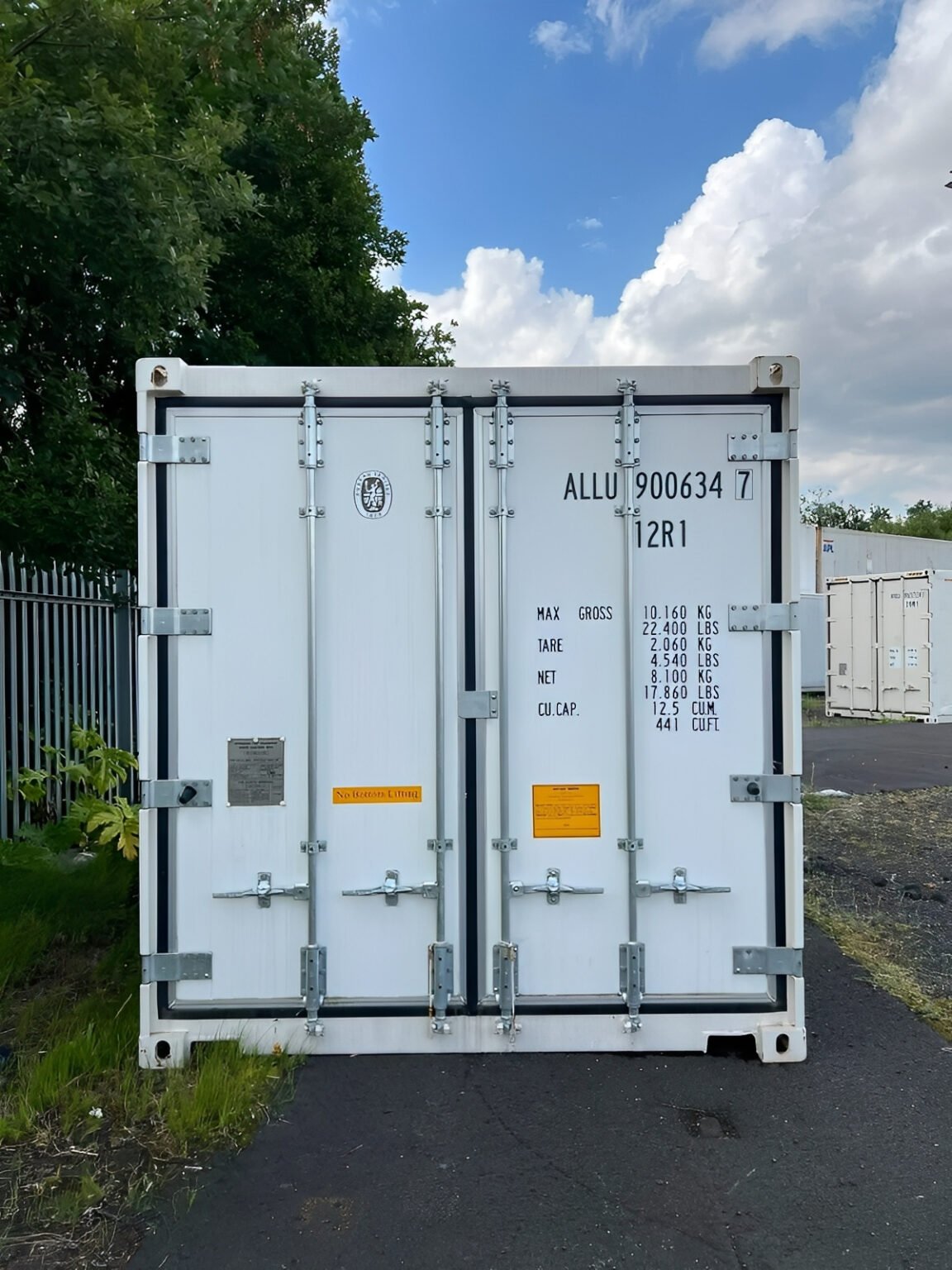

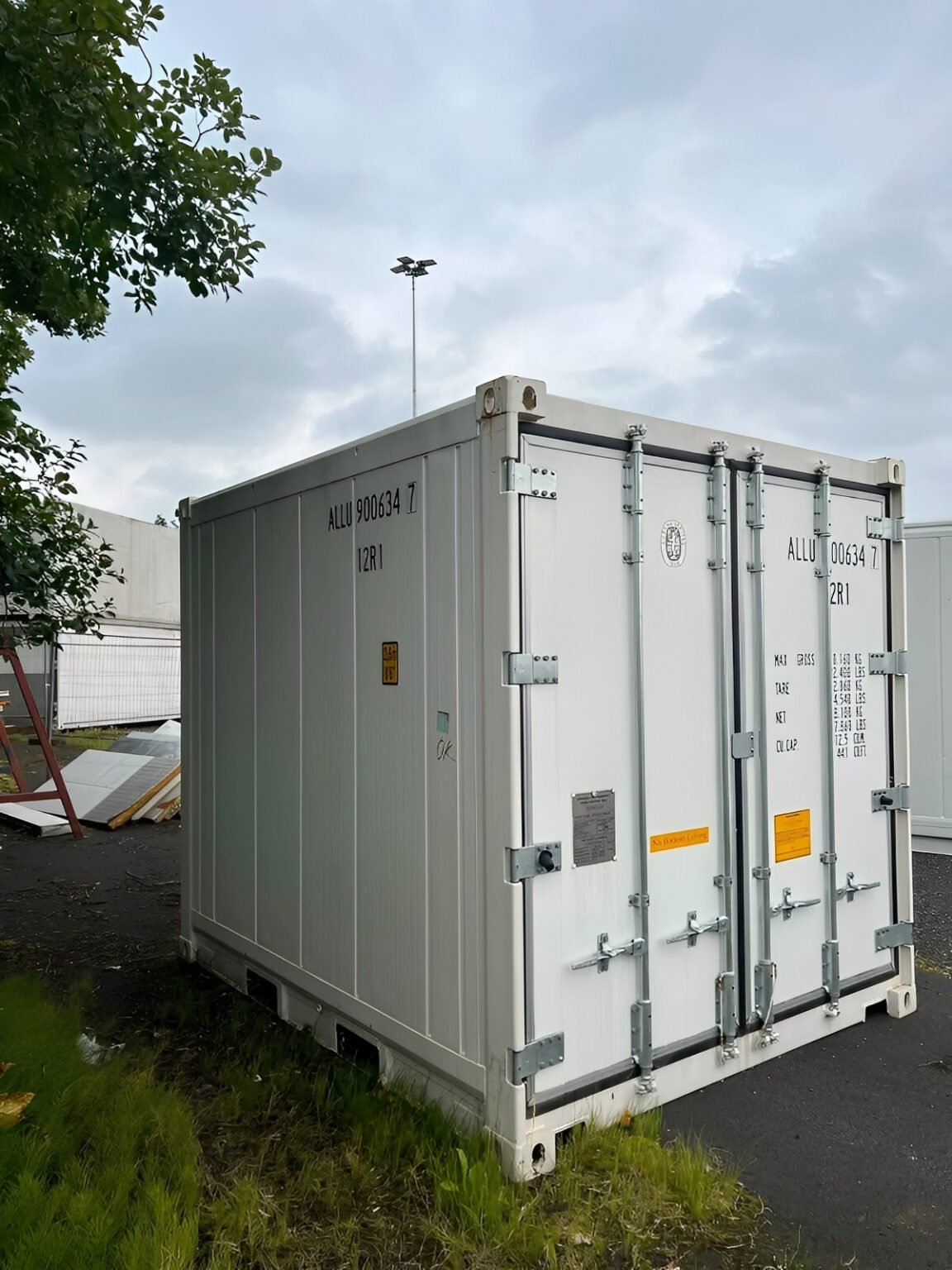

The unit is fitted with full-opening cargo doors for convenient loading and unloading. An easy-opening door handle with rubber grip provides practical access, while two forklift pockets assist with handling and positioning of the container.

Reference specifications:

• External dimensions: 2,991 × 2,438 × 2,591 mm
• Internal dimensions: 2,383 × 2,292 × 2,275 mm
• Door opening: 2,288 × 2,251 mm
• Internal volume: approximately 12.50 m³ / 441 cu. ft.
• Tare weight: approximately 2,010 kg / 4,431 lb
• Maximum payload: approximately 8,150 kg / 17,968 lb
• Maximum gross cargo weight: approximately 10,160 kg / 22,399 lb
• Refrigeration system: Thermo King Magnum Plus
• Temperature setting: -40°C to +30°C
• Electrical supply: 380V, 50/60Hz
• Construction: Corten steel with insulated refrigerated interior
• Interior: stainless-steel cladding
• Handling: two forklift pockets
